Nose Legs (AA1066 – AA1071)
Price range: $5.43 through $5.79
Description

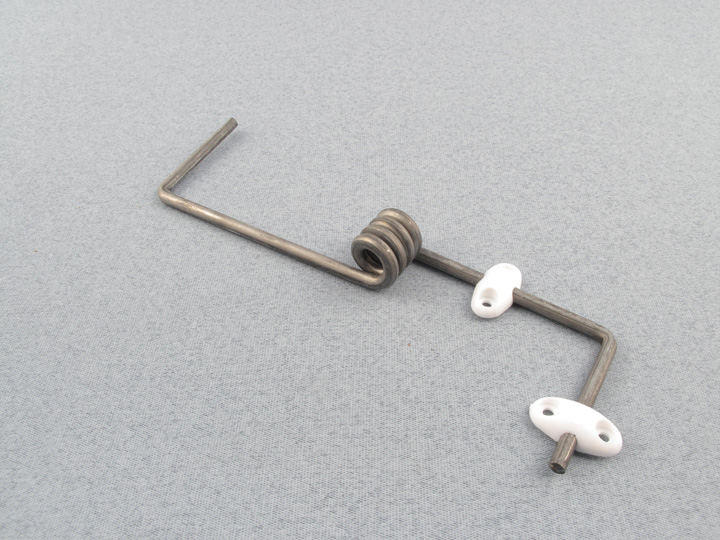

Four-coil, plated torsion springs, 90° angle at each end. We also supply a straight unit for bending to individual requirements.
Our Variations:
AA1066 8SWG. 4mm. Dimension from top of spring to bend 90mm. (3 1/2″)
AA1067 8SWG. 4mm. Dimension from top of spring to bend 104mm. (4″)
AA1068 8SWG. 4mm. Straight.
AA1069 l0SWG. 3mm. Dimension from top of spring to bend 90mm. (3 1/2″)
AA1070 l0SWG. 3mm. Dimension from top of spring to bend 104mm. (4″)
AA1071 l0SWG. 3mm. Straight.
May be fixed using engine mounts or undercarriage clamps.
